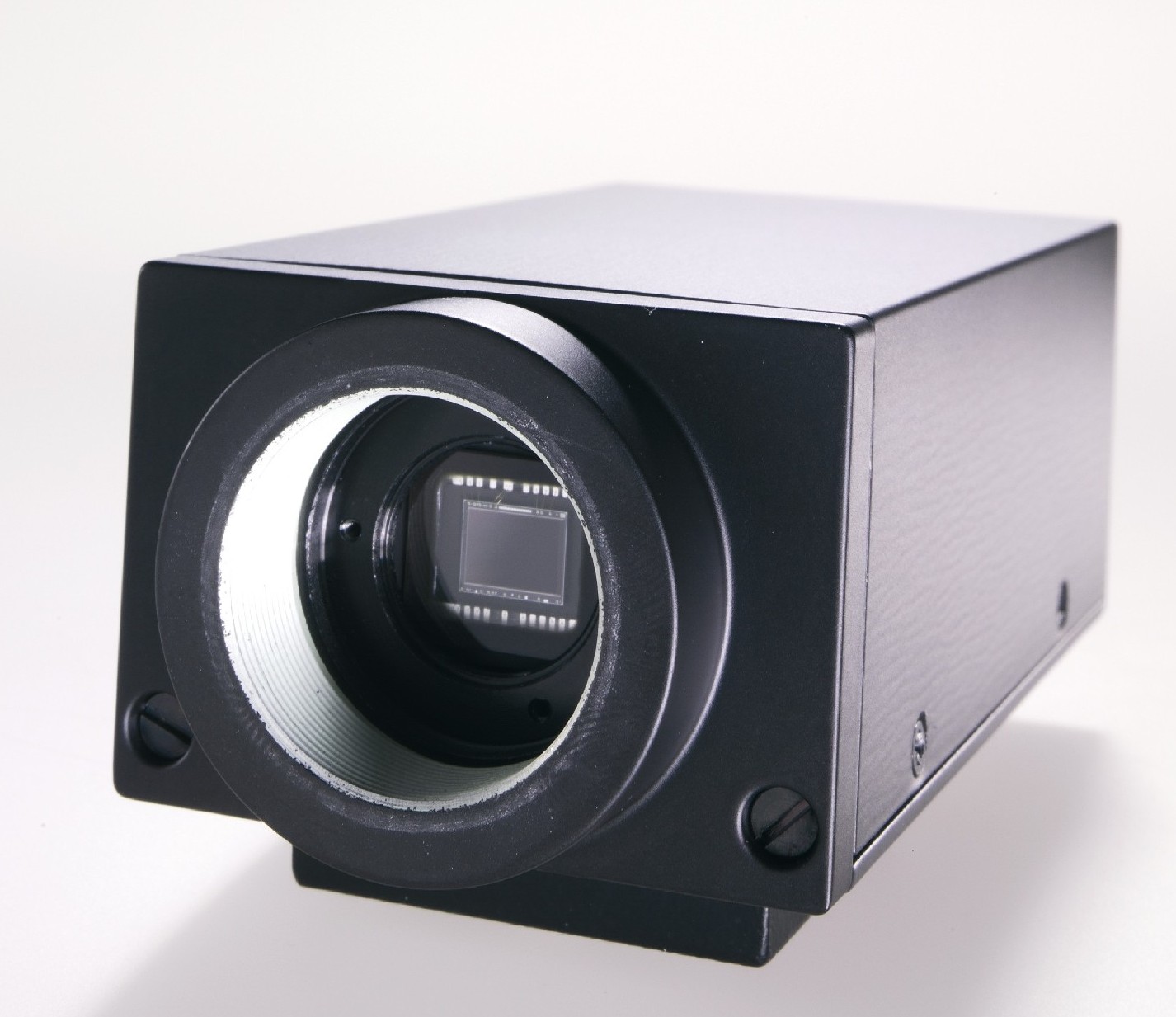

This camera IS a complete, self-contained vision system!

SMART Cameras with on board DSP

A whole range of matrix and line scan cameras with on board DSP processor: great for machine vision applications with NO PC and NO Frame grabber, at low cost and with high processing power, up to 3200 MIPS!

Image sensor, grabber, DSP processor, video putput, I/Os, Ethernet or RS232 are all included within a small camera!

Several product lines available: from lowest cost (400EUR) to highest resolution and top performance (1280x1024 x 3200MIPS)

Including world's smallest and world's most powerful (Click to believe!)

All manuals (HW & SW) downloadable here!

The most outstanding features...

• Unrivaled cost effectiveness (gets rid of PC and frame grabbers)
• Top reliability ("What is not there, will never fail")
• Extremely compact solutions with minimum cabling.
• Vision Tools visual development environment: build your application without programming, using our wide range of configurable tools.
• extensive image processing libraries.
• 24 months warranty!

...not enough?

• ThreeCPU ranges:
  • TI RISC @ 1GHz, 8000MIPS (C6 VC44xx series)
  • TI RISC @ 400MHz, 3200MIPS (C6 series)
  • TI RISC @ 150MHz, 1200MIPS (C6 series)
  • ADSP 2181-83-85 @ 32, 40, 52 o 75MHz (standard VCxx and M series)
• NEW: 44xx series with 8000MIPS processing power! Click
• NEW: 40xx series with 3200MIPS processing power! Click
• NEW: 20xx series with 1200MIPS processing power! Click

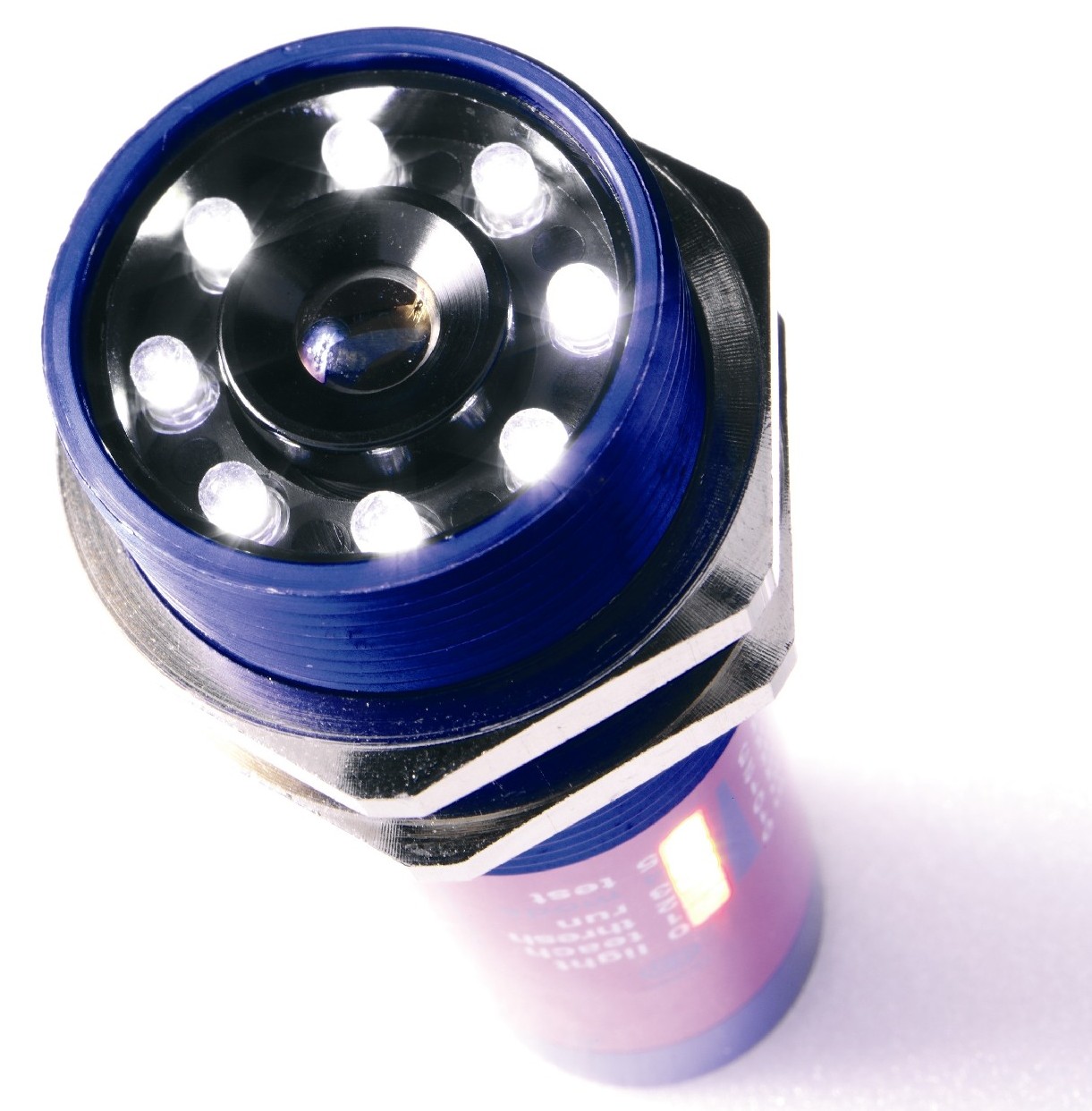

• NEW Mxx series: DSP, lens and light in a 30mm diameter waterproof threaded case! CLICK Unbelievabled cost.
• Ethernet TCP/IP port (some models)
• Resolutions from 500x582 thru 1280x1024 pixels
• Low cost, color and progressive scan versions
• Small sized: 120x50x35mm (drawings), 250g or 30mm diam x 100mm
• OEM, open frame X-tra LO-COST versions, even smaller!
• Optoisolated I/Os, 115Kbaud RS232, CCIR or SVGA video output.
• Programmable in C and/or Assembler
• Optimized image processing library available.
• PC based software for interactive, menu driven configuration.
• Several third party libraries and applications available worldwide (OCR, OCV, DotMatrix...)

A few benchmarks are supplied to support evaluation of processing power, concerning common image processing tasks (all @ 512x512, for 40MHz and 1200MIPS CPU)

Download all manuals and literature for cameras and libraries  here!

How much does it cost? $$$!

Main series:

(Download shortform  overview  with all models and features)

Serie 40xx	Vision Sensors	OEM (open frame)
CPU Texas C64 @400MHz (3200MIPS)	Ottica ed illuminatore integrati	Basso costo, ingombro ridotto.
Serie 20xx	Serie 44xx	Illuminatori LED
CPU Texas C64 @150MHz (1200MIPS)	CPU Texas C64 @1GHz (8000MIPS)	Backlight, spot, ring, lineari, dome...

Select by features: Select the most suitable model according to resolution, speed, frame rate, price...

See our processing speed: compare our benchmarks.

All manuals and tech doc for cameras and libraries are here to download!

Price lists for end users and integrators (free & easy registration required) $$$!

All models

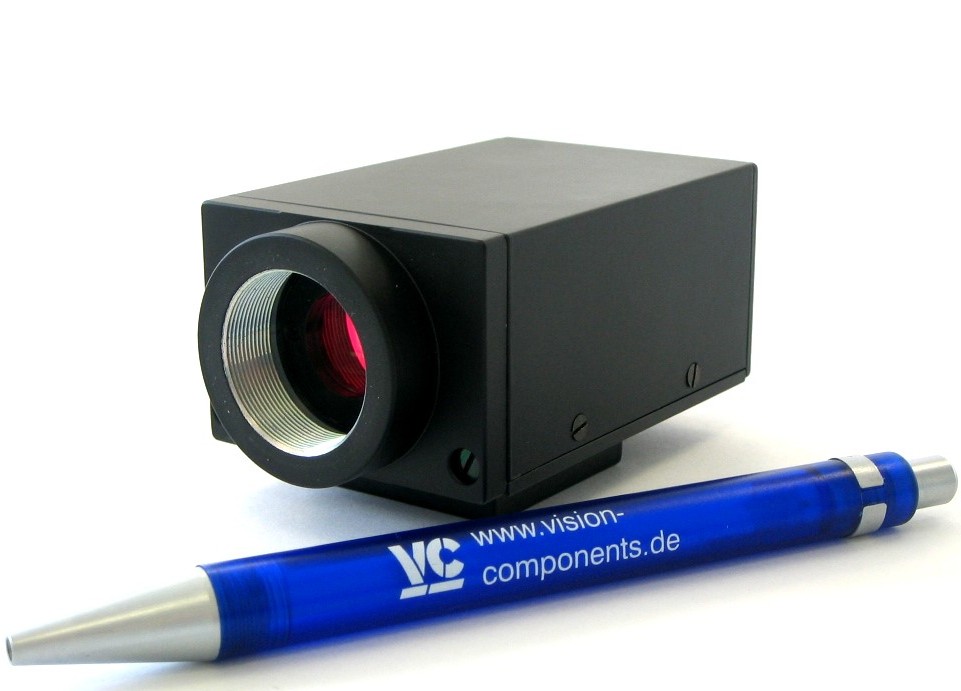

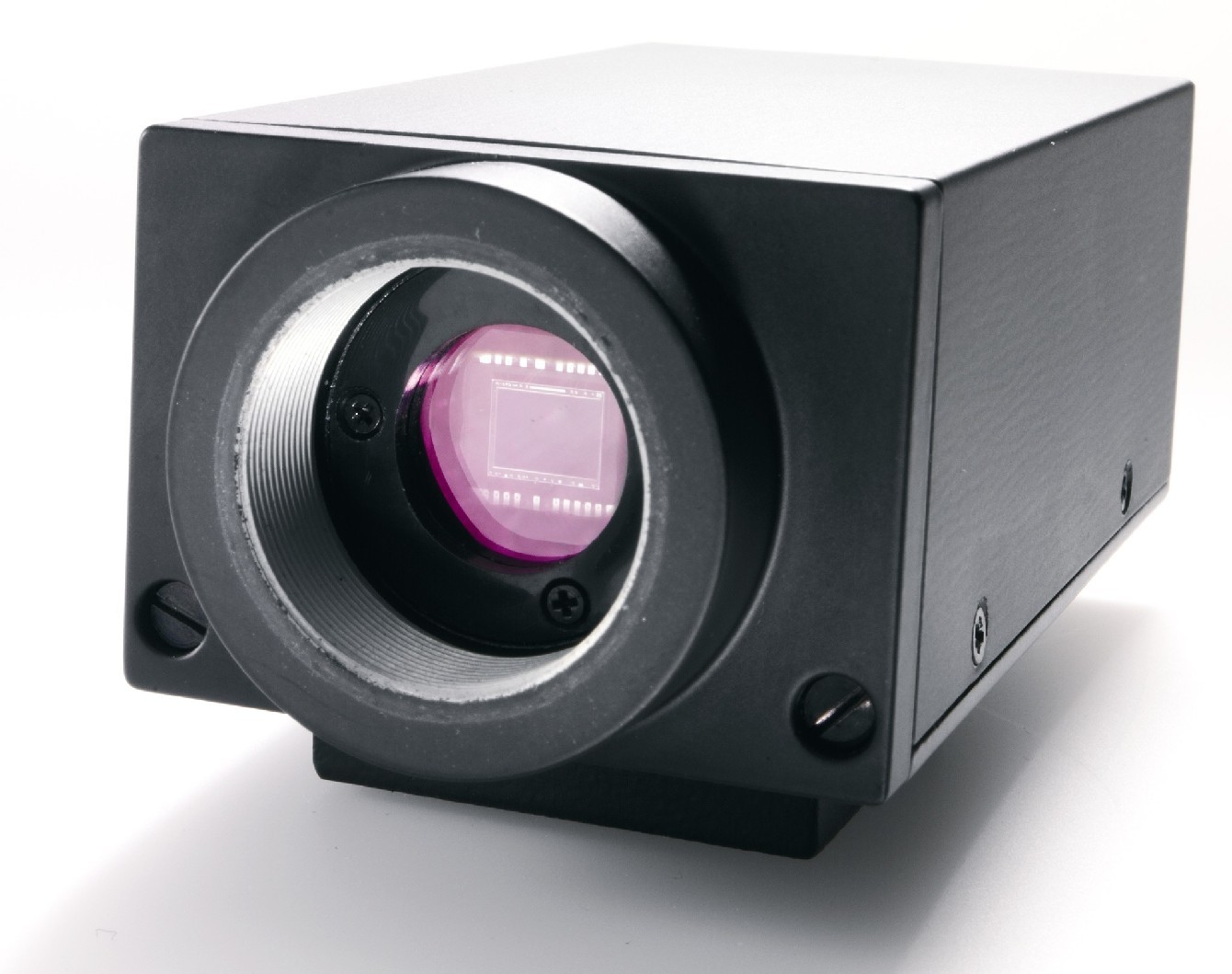

VC40xx serie: TI C64 processors @ 400MHz

(Top - 20xx - 40xx - 44xx - Sensors)

Models Specs	VC40xx Family
	Low End		High End					Line Scan
	VC4018	VC4016	VC4038	VC4058	VC4065	VC4066	VC4068	VC4002
Available	NOW	NOW	NOW	NOW	NOW	NOW	NOW	NOW
Link
Sensor	1/3" CCD	1/3" CCD	1/3" CCD	1/3" CCD	1/2" CCD	1/3" CCD	1/2" CCD	14mm CMOS
B&W/Color	BW/Color	BW/Color	BW	BW	BW	BW	BW	BW
Resolution/ Pixels	640x480	1024x768	640x480	640x480	768x582	1024x768	1280x1024	2048x1
fps (binning)/ Lines /s	32	16	63 (126)	250 (500)	55 (110)	20 (40)	18 (36)	max 11KHz
Shutter	33.3μsec – 2sec	41.7μsec – 2sec	5μsec – 20sec	5μsec – 20sec	5μsec – 20sec	10μsec – 20sec	10μsec – 20sec	91usec
Processor	TI 400MHz	TI 400MHz	TI 400MHz	TI 400MHz	TI 400MHz	TI 400MHz	TI 400MHz	TI 400MHz
Computational power	3200 MIPS	3200 MIPS	3200MIPS	3200MIPS	3200MIPS	3200MIPS	3200MIPS	3200MIPS
RAM	32M	32M	32M	32M	32M	32M	32M	32M
FLASH/Smart	4M/NO	4M/NO	4M/128M	4M/128M	4M/128M	4M/128M	4M/128M	4M/128M
Digital I/O’s	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs
Interface	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet
Incremental encoder input	NO	NO	YES	YES	YES	YES	YES	YES
Video output	via Ethernet	via Ethernet	SVGA	SVGA	SVGA	SXGA	SXGA	via Ethernet

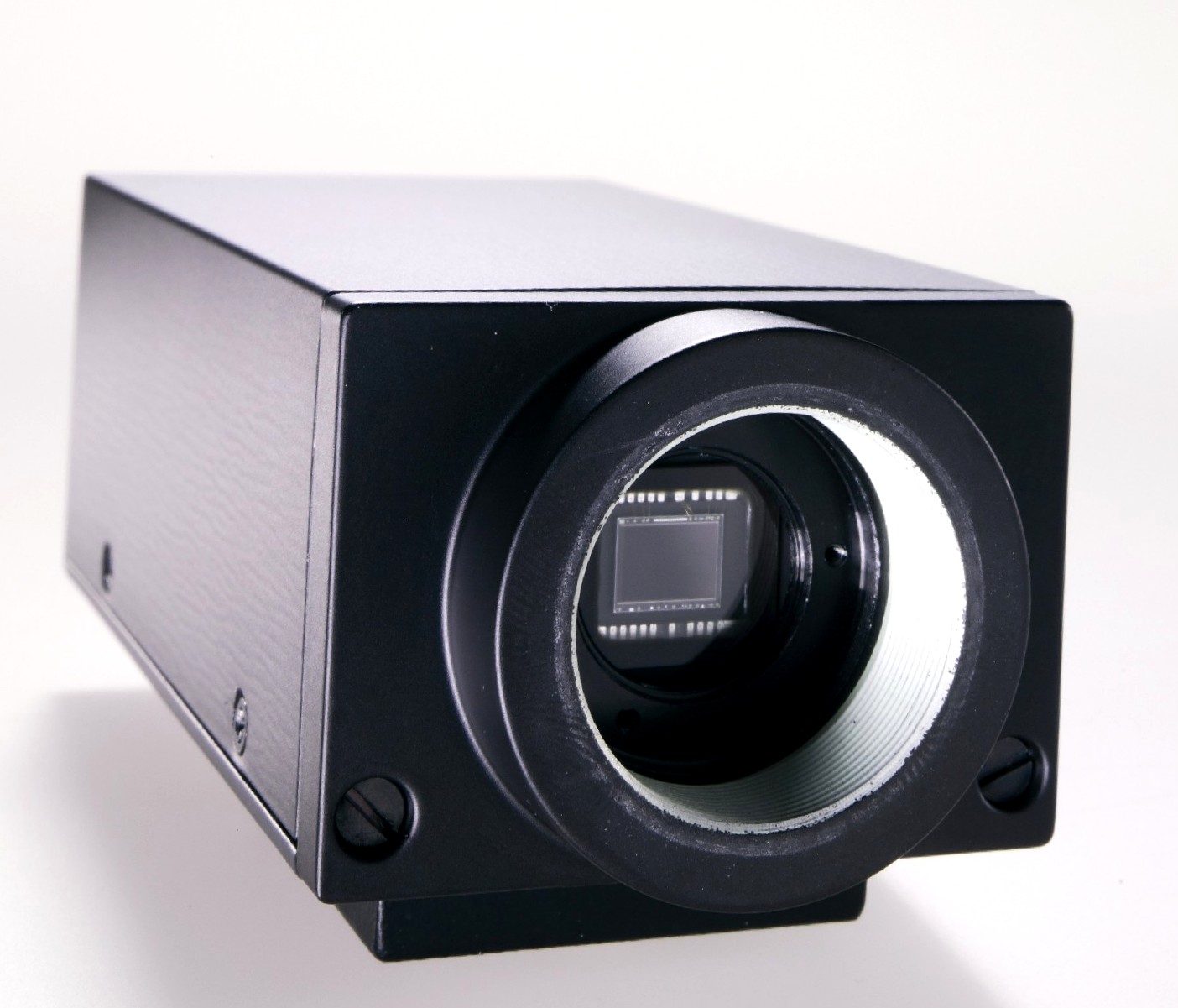

VC44xx serie: TI C64 processors @ 1GHz

(Top - 20xx - 40xx - 44xx - Sensors)

Models Specs	VC44xx Family
	VC4458	VC4465	VC4466	VC4468	VC4472
Available	NOW	NOW	NOW	NOW	NOW
Link
Sensor	1/3" CCD	1/3" CCD	1/3" CCD	1/2" CCD	1 1/8" CCD
Resolution/ Pixels	640x480	768x582	1024x768	1280x1024	1600x1200
fps (binning)/ Line frequency	242(484)	55 (110)	20 (40)	14 (28)	10 (20)
Shutter	5μsec – 20sec	10μsec – 20sec	10μsec – 20sec	10μsec – 20sec	20μsec – 20sec
Processor	TI 1GHz	TI 1 GHz	TI 1 GHz	TI 1GHz	TI 1GHz
Computational power	8000 MIPS	8000 MIPS	8000 MIPS	8000 MIPS	8000 MIPS
RAM	64M (opt 128M)	64M (opt 128M)	64M (opt 128M)	64M (opt 128M)	64M (opt 128M)
FLASH/smart	4M/512M	4M/512M	4M/512M	4M/512M	4M/512M
Digital I/O’s	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs
Interface	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet	RS232 AND 100 Mbit Ethernet
Incremental encoder input	YES	YES	YES	YES	YES
Video output	SVGA	SXGA	SXGA	SXGA	SXGA

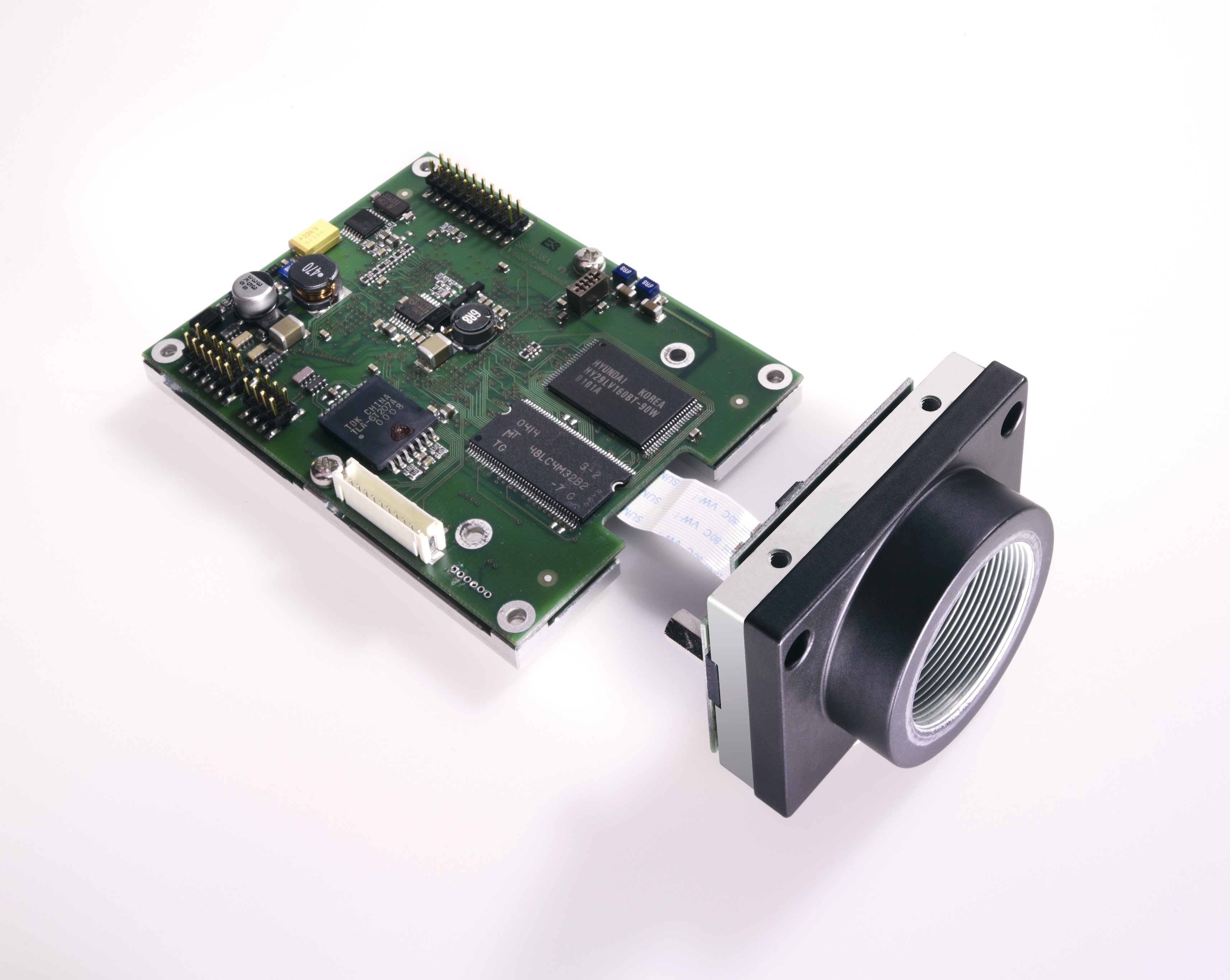

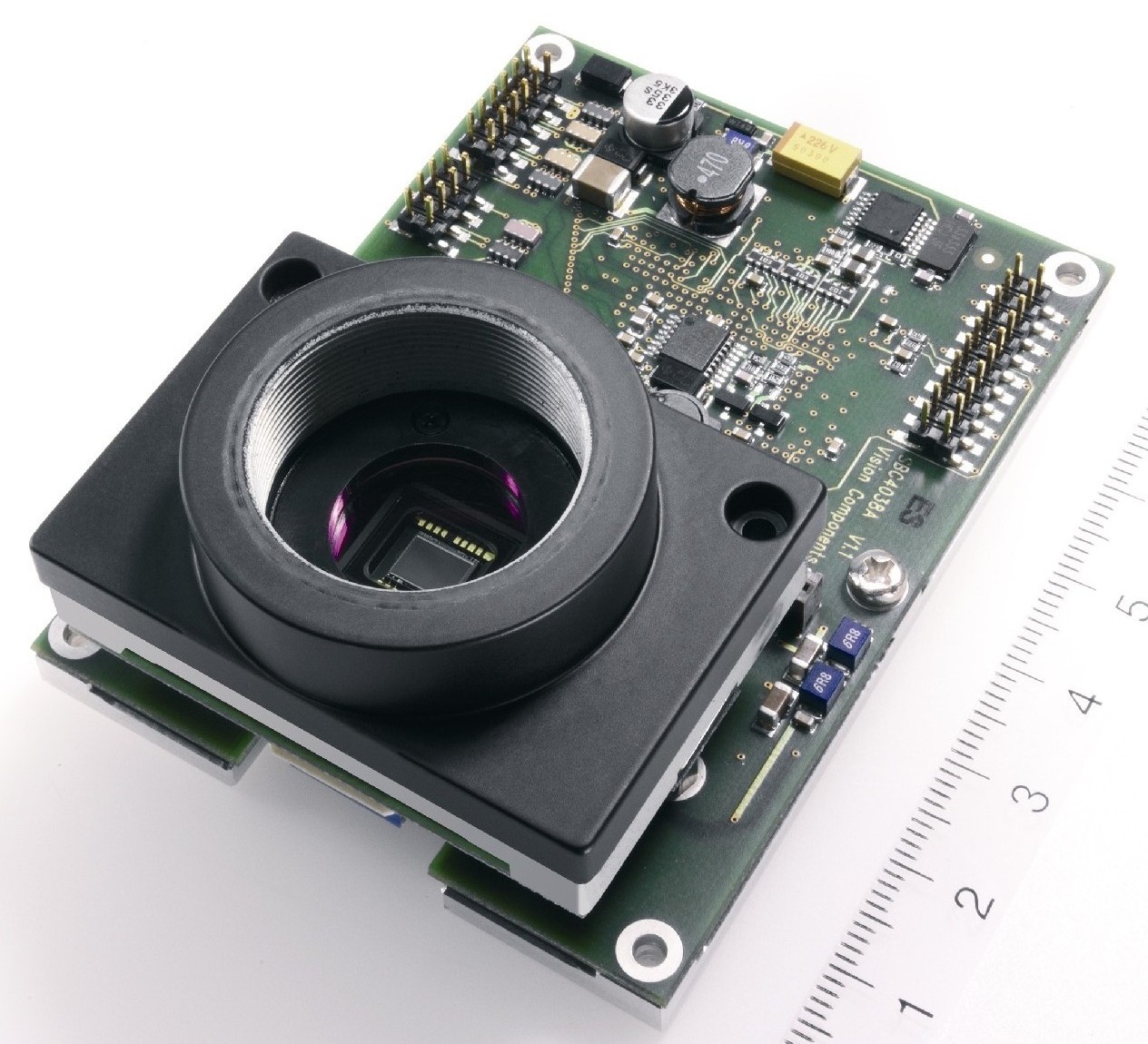

SBC (open frame) models and industrial sensors.

(Top - 20xx - 40xx - 44xx - Sensors)

Models Specs		Vision Sensor		Single Board Cameras
		VisiCube	VCM50	VCSBC50	VCSBC4018	VCSBC4016
Available		NOW	NOW	NOW	NOW	NOW
Link	RS232				N/A	N/A
	LAN		N/A	N/A
Sensor		1/4" CCD	1/4" CCD	1/4" CCD	1/3" CCD	1/3" CCD
B&W/Color		BW	BW	BW/Color	BW/Color	BW/Color
Shutter		36μsec – 2sec	24μsec – 2sec	24μsec – 2sec	33.3μsec – 2sec	41.7μsec – 2sec
Processor		TI 400MHz	AD 21xx	AD 21xx	TI 400MHz	TI 400MHz
Computational power		3200 MIPS	375 MIPS	375 MIPS	3200 MIPS	3200 MIPS
Resolution/ Pixels		640x480	640x480	640x480	640x480	1024x768
fps/ Line frequency		32	25 (100 in binning mode)	25 (100 in binning mode)	32	16
IP		IP65	IP67	-	-	-
RAM		32M	2M	2M	32M	32M
FLASH/Smart		4M/NO	8M/NO	8M/NO	4M/NO	4M/NO
Digital I/O’s		2 inputs, 4 outputs	2 inputs, 4 outputs	2 inputs, 4 outputs, 12 additional TTL outs	2 inputs, 4 outputs, 8 additional TTL I/O’s	2 inputs, 4 outputs, 8 additional TTL I/O’s
Interface		100MB Ethernet, RS232	RS232	RS232	100 Mbit Ethernet	100 Mbit Ethernet
Video output		via Ethernet	-	-	via Ethernet	via Ethernet

VC20xx serie: TI C64 processor @ 150MHz

(Top - 20xx - 40xx - 44xx - Sensors)

Specs Models		VC20xx Family
		VC2028	VC2038	VC2048	VC2065	VC2066	VC2068
Available		NOW	NOW	NOW	NOW	NOW	NOW
Link	RS232			N/A
	LAN	N/A
Sensor		1/3" CCD	1/3" CCD	1/3" CCD	1/2" CCD	1/3" CCD	1/2" CCD
B&W/Color		YES/ NO	YES/ NO	YES/ NO	YES/ YES	YES/ NO	YES NO
Shutter		30μsec – 20 sec	30μsec – 20sec	18μsec – 20sec	5μsec – 20sec	10μsec – 20sec	9μsec – 20sec
Resolution/ Pixels		640x480	640x480	640x480	782x582	1024x768	1280x1024
fps/Line frequency		25	40	110	45	16 (32 in binning mode)	13 (26 in binning mode)
Processor		TI C64 150MHz	TI C64 150MHz	TI C64 150MHz	TI C64 150MHz	TI C64 150MHz	TI C64 150MHz
Computational power		1200 MIPS	1200 MIPS	1200 MIPS	1200 MIPS	1200 MIPS	1200 MIPS
RAM		16M	16M	16M	16M	16M	16M
FLASH/smart		2M/NO	2/16M	2/16M	2/16M	2/16M	2/16M
Digital I/O’s		4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs	4 inputs, 4 outputs
Interface		RS232	RS232 OR 100 Mbit Ethernet	100 Mbit Ethernet	RS232 OR 100 Mbit Ethernet	RS232 OR 100 Mbit Ethernet	RS232 OR 100 Mbit Ethernet
Video output		SVGA	SVGA	SVGA	SVGA	SXGA	SXGA

Available versions:

Several models are available, from the lowest cost to the highest performance and features.

Family map:

• << C6: high processing power (1200MIPS), up to 54frames/second, Ethernet connectivity!
• << Mxx: 30mm diameter threaded waterproof case including lens and LED light source.

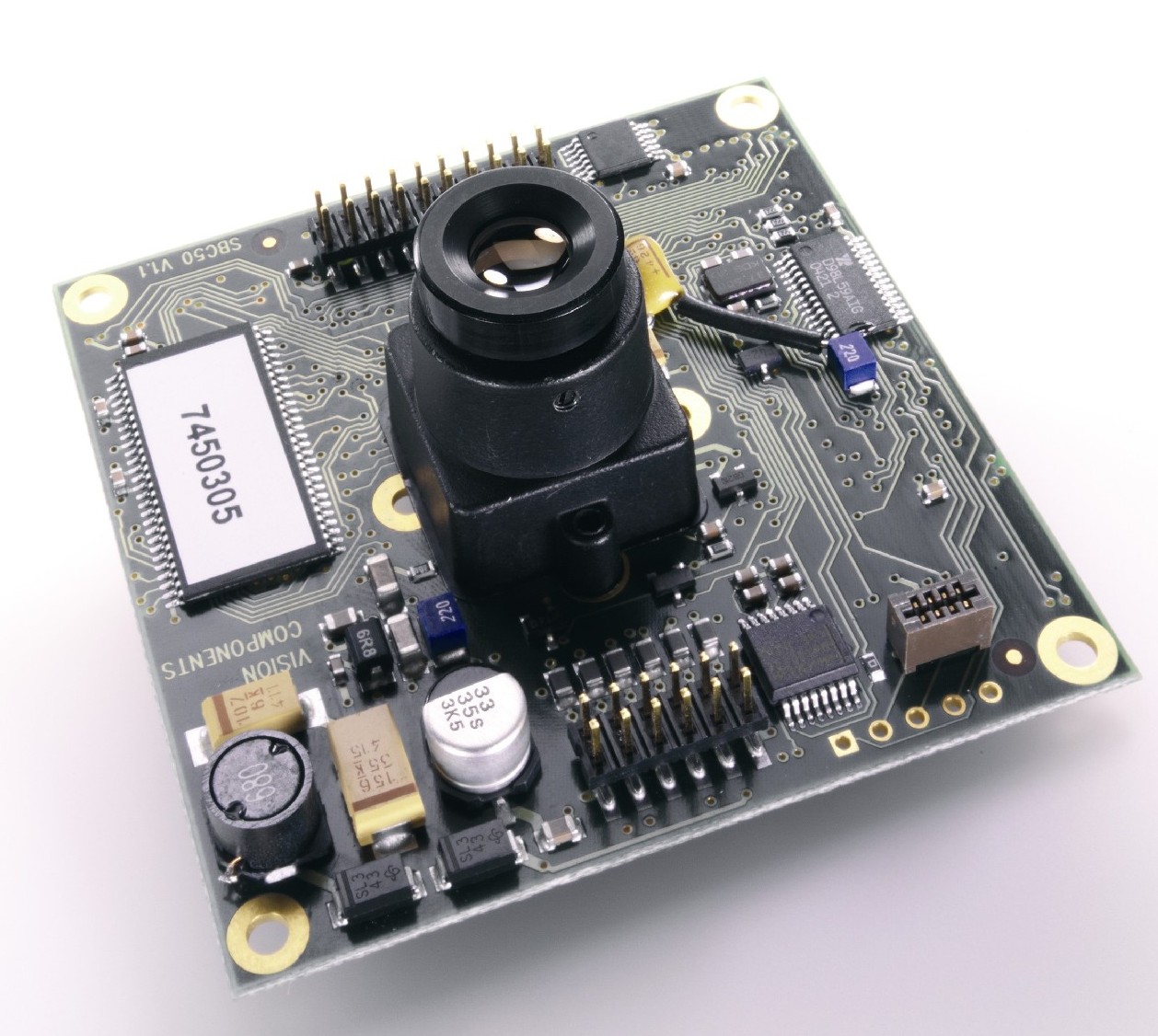

• <<SBC50: open frame progressive scan, very low cost.
• << VCxx: standard models, ADSP CPU, clock between 32 and 52MHz, progressive scan.

Chose your model according to the features you need:

• Processor:
  • TI 32 bit RISC @ 400MHz - 3200MIPS (Serie C6)
  • TI 32 bit RISC @ 150MHz - 1200MIPS (Serie C6)
  • ADSP (32-75MHz, VCxx and M series)
• Memory:
  • 2M RAM e 512K Flash
  • 8MRAM e 2M Flash
  • 8M EEprom
• Sensor features:
  • from 500x582 to 1280x1024
  • Progressive scan, asynch reset
• Frame rate from 20 to 113 frames/second
• CCD / CMOS sensors

• Video oputput:
  • CCIR B/W
  • Color SVGA
  • Color overlay
• Case:
  • standard metal case, C lens
  • open frame (low cost OEM version)
  • 30mm diam threaded waterproof case  (Mxx).

Accessories:

DC power (10-18Vcc or 24V) can be supplied by any power unit or you can purchase our 220VAC adaptor (also available for DIN rail).

All cables (power, I/O's, video, RS232) are available ready-made in standard lengths (5, 10, 25m) or custom cut (see price list).

In order to provide a handy user interface device, with no need of more complex devices, a simple keypad can be connected and powered by the camera itself. You'll thus be able to implement menu driven setup, ROI selection and the like with a simple, cost effective device.

NEW! Need to connect several SMARTVIEWs to a PC or PLC with only one RS232 available? Or share information among 3 or more cameras? Or connect to a fieldbus (like Profibus) device? You can now convert SMARTVIEW's RS232 link into a different interface, like Ethernet, Profibus RS422, RS485and more. And you don't need to change your software! Click here to know more

Pricing:

Our price list includes all models and accessories, with a summary of their charachteristics; all amounts are in EURO and KLits.

As you will notice, prices tend to be just slightly higher than prices of comparable plain cameras (i.e. cameras with no on board processor): great savings are obviously achieved through elimination of PC or other external processors, frame grabbers, racks and the like.

ze="2">My page

ref="zava.html">My page
